How ASTTUS Uses 3D Scanning and Portable Measurement to Support Motorsport Performance
In high-performance motorsport environments, accuracy, speed and flexibility are critical. ASTTUS, a specialist in machining mechanical parts for motorsport championships, relies on the Kreon Ace portable measuring arm with Skyline Open scanner to deliver fast, accurate inspection and reverse engineering capabilities.
Supplied with Kreon Zenith software, the complete portable metrology solution supports part design, 3D scanning, inspection and reporting both in the workshop and trackside preparation environments.
Why ASTTUS Chose the Kreon Ace Measuring Arm
Johan Thiriet, founder of ASTTUS, recognised early on the value of 3D scanning technology for part development, particularly in reverse engineering projects where CAD data may not be available.
An initial investment in a turntable-based 3D scanner proved insufficient in terms of accuracy and flexibility. ASTTUS therefore moved to a more capable solution: a 2-metre Kreon Ace portable measuring arm combined with the Skyline Open 3D scanner.
The system offered:
- High-accuracy tactile probing
- Advanced 3D scanning capability
- Portability for workshop and vehicle-based measurement
- Integrated Zenith metrology software supplied as standard
- A competitive total solution with rapid return on investment
Portable Measurement in Complex Automotive Environments

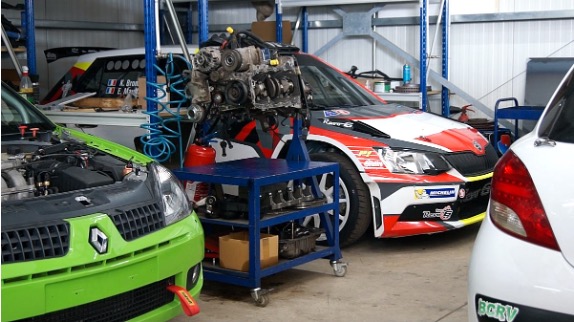

Motorsport preparation often requires measurement in confined and complex areas under the bonnet, within wheel arches, or directly on the vehicle chassis. Traditional measuring equipment is rarely suitable for this type of application.
The Kreon Ace portable arm enables:
- Fast, accurate probing in restricted spaces
- On-vehicle geometric measurement
- High-density 3D scanning for reverse engineering
- Inspection of subcontract machined components
- Generation of professional inspection reports
The more accurate the initial measurement, the fewer adjustments are required during final assembly delivering measurable productivity gains.
Applications at ASTTUS

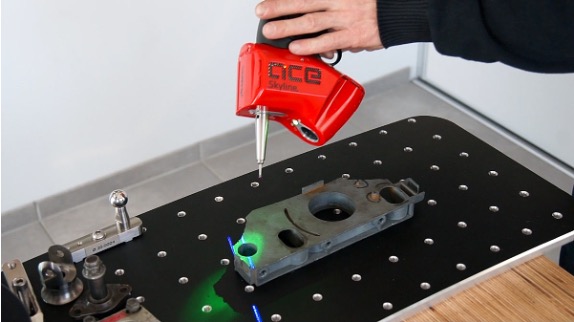

The Kreon Ace arm with Skyline Open scanner supports a wide range of automotive and motorsport applications, including:
- Geometric measurement using tactile probes directly on vehicles
- Reverse engineering of legacy, worn or damaged parts without CAD data
- 3D scanning for part replication and modification
- Subcontract inspection and quality reporting
- Full inspection reporting using Zenith metrology software
Johan Thiriet explains: “This arm is like a Swiss Army knife, I use it instinctively and without thinking about it. It is very flexible and is suited to a wide variety of applications.”
Reducing Vehicle Downtime in Motorsport
Motorsport projects demand rapid turnaround. From adjusting clutch systems in rally cars to installing specialist differentials in Formula France vehicles, preparation work must be completed quickly and accurately.
The daily use of the Kreon Ace portable measuring arm allows ASTTUS to:
- Minimise vehicle downtime
- Accelerate testing schedules
- Increase workshop productivity
- Take on additional customisation projects throughout the season

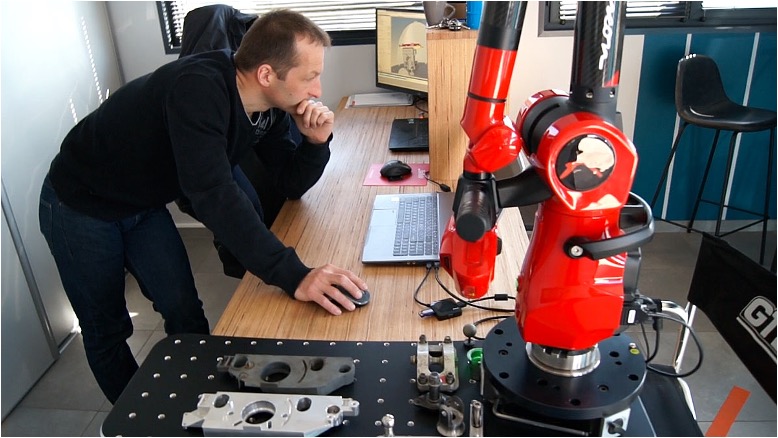

Its temperature-regulated design means the arm can be used in office environments for reverse engineering projects or mounted on a dolly in the workshop for direct vehicle measurement.

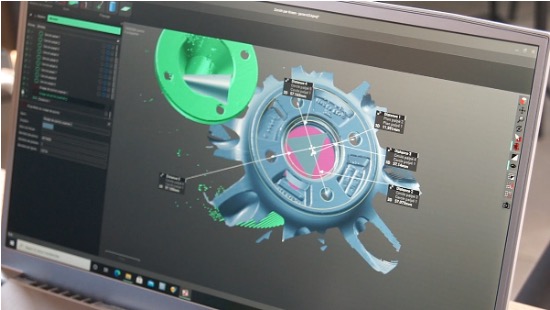

Integrated Software for Scanning, Probing and Reporting
ASTTUS selected Kreon Zenith software for its simplicity and seamless integration with Kreon hardware.
Zenith enables:
- Scanning and probing within one unified platform
- Inspection workflow management
- Clear, professional inspection report generation
- Efficient project handling from measurement through to documentation
For subcontract machining operations, the ability to provide reliable inspection reports is essential and Zenith supports this requirement effectively.
About ASTTUS
ASTTUS specialises in machining mechanical parts for motorsport applications. The company is involved at every stage of vehicle preparation for competition and offers full customisation services.
With in-house CAD/CAM capability and advanced 5-axis machining, ASTTUS also operates as a subcontract manufacturer of precision machined components.
Portable Arm Solutions for Automotive and Motorsport
This case study demonstrates how the Kreon Ace portable measuring arm and Skyline Open scanner provide real-world value in demanding automotive environments.
If your business requires:
- Portable CMM capability
- 3D scanning for reverse engineering
- On-vehicle measurement
- Inspection and reporting solutions
Status Metrology can support you with Kreon portable arm technology, software integration and expert training.
