Ultra-high accuracy fixed probe head measurements to the tightest part tolerances

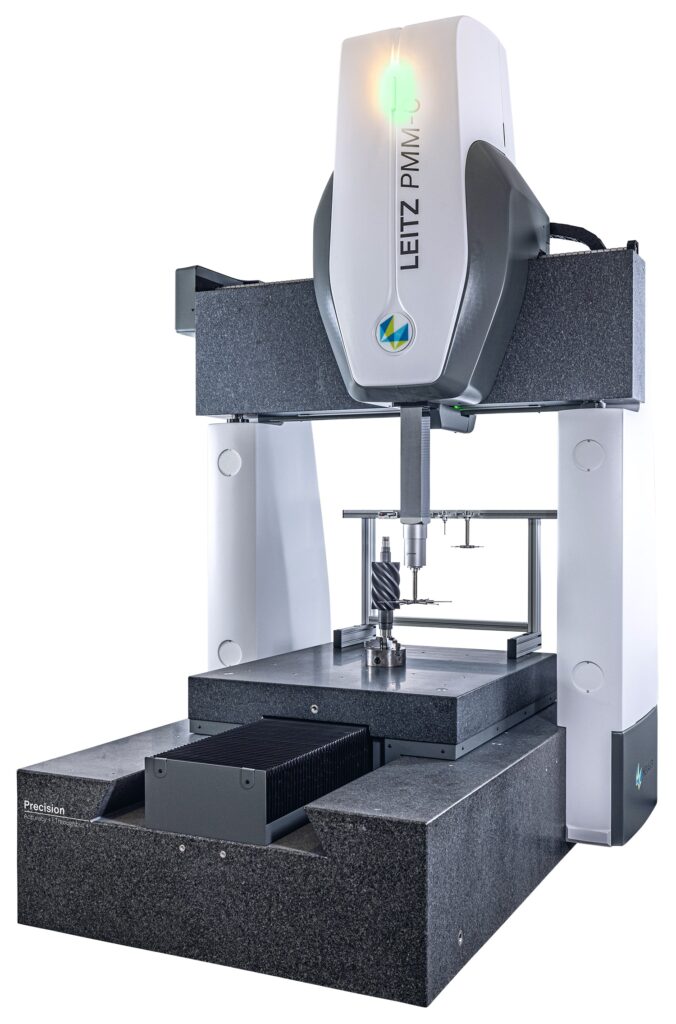

The Leitz PMM-C Precision model is configured to achieve the best possible measurement capability using ultra-high precision fixed probe head measurements. This model offers maximum repeatability and form measurement accuracy, even for long or multi-styli configurations in fast single-point probing or variable high-speed scanning procedures.

• Fast ultra-high accuracy measurement of very tight tolerance (< 7 µm) functional form features
• Very high measurement capability (Cg, Cgk, Gauge R&R)
• Sub-micron accuracy and reproducibility required for calibrating master parts and gauges
• Increased acceptance range of produced parts thanks to minimised measurement uncertainty
• Measuring any type of gear, gear segments, gear racks and gear cutters.
• Low force probing to avoid part distortion or damage
• Non-contact measurements with chromatic white light and interferometric sensors
• Simultaneous 4-axis scanning – optical or tactile – in combination with a rotary table
